Description

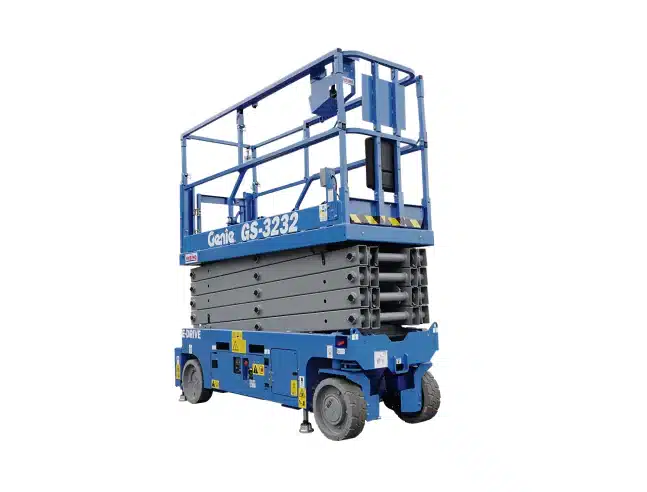

Genie® GS™-3232 Electric Scissor Lift
High Reach, Narrow Access. The Ultimate Solution for Tight Aisles.
The Genie® GS™-3232 electric scissor lift offers a unique combination of high-reaching capability and a narrow-access chassis. This machine is specifically designed for tasks that require significant height in confined spaces, such as high-volume warehouses, distribution centers, and retail superstores. Its ability to fit through a standard single doorway makes it exceptionally versatile.
Key Features & Benefits
- Go-Anywhere Narrow Chassis: At only 32 inches (0.81 m) wide, the GS-3232 navigates tight aisles and passes through standard doors with room to spare.
- Impressive Height: Reaches a maximum working height of 38 ft (11.5 m), making it ideal for high-reach maintenance and stocking tasks.
- Zero-Emission Power: The 24V DC electric system provides a full day of quiet, emission-free work, perfect for indoor use.
- Extended Work Area: A 36 in (0.91 m) slide-out extension deck comes standard, creating a larger platform for operators and their tools.
- Reliable and Serviceable: Features the robust Genie build quality and Smart Link™ controls for easy troubleshooting and maintenance.
Specifications at a Glance
| Specification | Metric | Imperial |
|---|---|---|
| Max Working Height | 11.50 m | 38 ft |
| Max Platform Height | 9.50 m | 32 ft |
| Lift Capacity | 227 kg | 500 lbs |
| Machine Width | 0.81 m | 32 in |
| Machine Length | 2.41 m | 7 ft 11 in |
| Weight | 2,246 kg | 4,951 lbs |
| Power Source | 24V DC (Four 6V 225 Ah batteries) | |
Ideal Applications
- Warehouse and distribution center inventory and maintenance
- Narrow-aisle retail stocking
- Electrical and mechanical work above obstacles
- Facilities management in buildings with standard doors
Don’t Let Tight Spaces Limit Your Reach
The Genie GS-3232 provides the height you need in the compact package your jobsite demands. Contact us for rental availability and pricing.
